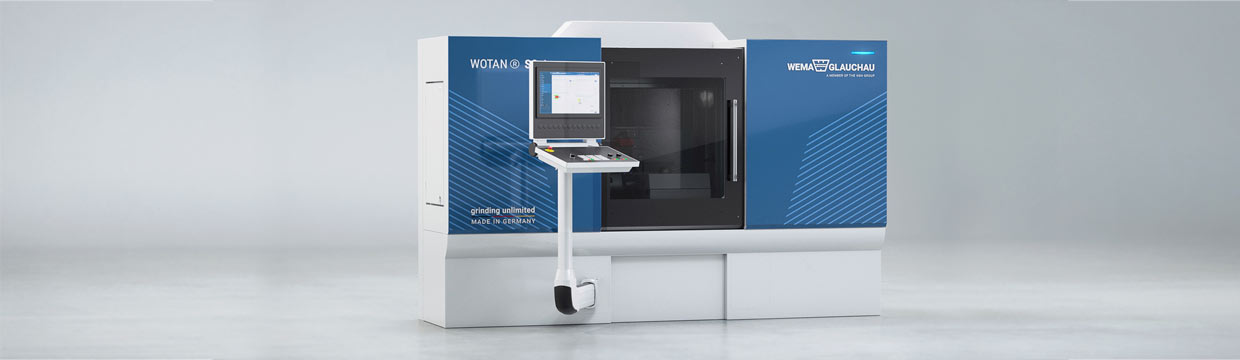

WOTAN® S2A

The WOTAN® S2A is the small­est and most cost effec­tive among our exter­nal grind­ing machines. It is highly suit­able for small and pre­cise parts.

With options such as auto­matic work­piece feed­ing, it fits into your pro­duc­tion processes. Thanks to the optional inter­nal grind­ing spin­dle, you catch up with our uni­ver­sal cylin­dri­cal grind­ing machines. A tool changer sys­tem pro­vides addi­tional options for closed-door machining.

Of course, we opti­mize every S2A accord­ing to your cur­rent and future grind­ing tasks and sup­port you with our flex­i­ble financ­ing options if required.

Key Facts

  • Parts up to 100 kg
  • Dimen­sions outer Ø300 mm and 600 mm length
  • grind­ing wheel up to Ø 500
  • grind­ing wheel widths up to 80 mm
  • wear-free hydro­sta­tic guid­ing systems
  • wear-free lin­ear drives
  • machine beds made of poly­mer concrete
  • WOP-TouchTM user interface

#rollers #tubes #shafts #spin­dles #tools #poly­gons #bear­ing blocks #spin­dle housings

For larger work­pieces we refer to our WOTAN® S3A.

For even more machin­ing options we offer the uni­ver­sal cylin­dri­cal grind­ing machine WOTAN® S3U.

WOTAN® S2A

Com­pact and cost effec­tive exter­nal grind­ing machine for light and small workpieces.

Icon_max_Spitzenhoehe

175 mm

Icon_max_Werkstuecklaenge

600 mm

Icon_max_Werkstueckgewicht

100 kg

Axis speed

0–20,000 mm/​min

Round Tool Table

Direct / exter­nal drive with a res­o­lu­tion of 0.000 05°

with up to 4 tool positions

Work­piece spin­dle drive:

  • Rolling bear­ing, belt drive with­out mea­sur­ing system
  • Rolling bear­ing, direct drive with mea­sur­ing sys­tem as C‑axis
  • Hydro­sta­tic bear­ing, direct drive with mea­sur­ing sys­tem as C‑axis

Options

  • Pre-process mea­sure­ment (to recog­nise part’s posi­tion and set zero point)
  • In-process mea­sure­ment (Ø mea­sur­ing and reg­u­lat­ing dur­ing the grind­ing process)
  • Post-process mea­sure­ment (deter­mine Ø, check clear­ances, set new zero point, NiO ejec­tion, etc.)
  • wear-free hydro­sta­tic guides for the lin­ear axes
  • wear-free hydro­sta­tic work­piece spindle
    wear-free lin­ear drives
  • direct and exter­nally dri­ven grind­ing spindles
  • sta­tion­ary and rotary dressers
  • with and with­out round table
  • inter­nal grind­ing with inter­nal grind­ing spin­dles possible
  • Coolant prepa­ra­tion
  • Exhaust sys­tems
  • Motor cool­ing
  • remote main­te­nance
  • and much more
